High-Altitude Dry Capacitor
BKMJ-GHigh-Altitude Dry Capacitor
¤Adapt to the altitude of 2000~5000 meters in the plateau area.
¤Three characteristics of anti - low pressure, low temperature and temperature resistance.

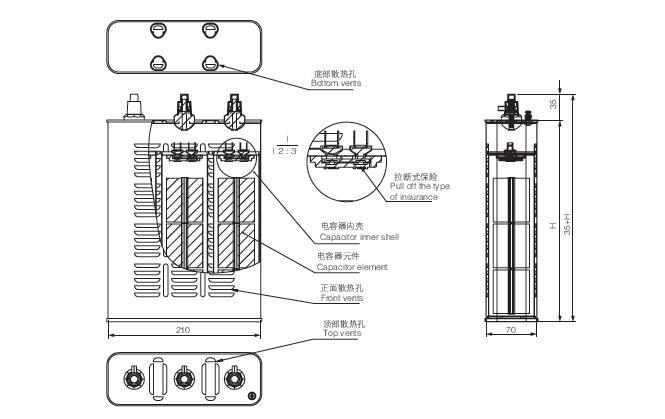

¤Excellent heat dissipation function: internal use of multiple sets of cylindrical capacitor combined structure, the heat dispersion polymerization; capacitor shell side adopts a multi row louvered vents, top and bottom cover with a convection hole design, circulation cooling.
¤Cylindrical capacitance unique bakelite terminal, copper plate open type tensile explosion-proof device (patent：ZL 2013 1 0370567.3 ，ZL 2013 1 02449000.6), effectively reduce the calorific value of the terminal, the explosion-proof function is reliable.
¤Cylindrical capacitor using double sealing treatment, anti low pressure, low temperature function, to prevent leakage of shell deformation.
¤The insulation strength is increased and the temperature of the shell is reduced by adopting the anti radiation insulation paint capacitor shell.
¤Plateau dry type capacitor broke through the traditional oil, wax capacitor, due to the temperature of the defects, to ensure the reliability and safety of plateau dry capacitor.
¤Three characteristics of anti - low pressure, low temperature and temperature resistance.
¤Excellent heat dissipation function: internal use of multiple sets of cylindrical capacitor combined structure, the heat dispersion polymerization; capacitor shell side adopts a multi row louvered vents, top and bottom cover with a convection hole design, circulation cooling.
¤Cylindrical capacitance unique bakelite terminal, copper plate open type tensile explosion-proof device (patent：ZL 2013 1 0370567.3 ，ZL 2013 1 02449000.6), effectively reduce the calorific value of the terminal, the explosion-proof function is reliable.
¤Cylindrical capacitor using double sealing treatment, anti low pressure, low temperature function, to prevent leakage of shell deformation.
¤The insulation strength is increased and the temperature of the shell is reduced by adopting the anti radiation insulation paint capacitor shell.
¤Plateau dry type capacitor broke through the traditional oil, wax capacitor, due to the temperature of the defects, to ensure the reliability and safety of plateau dry capacitor.
